D Style MicroPak Enclosure

A Very Simple MicroPak Enclosure

Product Description

The D-Style MicroPak is our simplest design using a one-piece, seamless extruded tube. Ideal for small desk top and/or hand-held instruments requiring limited front and rear panel space. When used in combination with a MicroPak Rack Mount Panel, it is suitable for rack mounted modular systems that may require that each unit be isolated from the others.

The D-Style MicroPak is available in 6 standard sizes with various height and width combinations and offers one or more standard lengths (front to back) within each size. Lengths beyond the standard options available are made to order. Refer to the D Style Technical Data Sheet.

D-Style MicroPak Enclosures offer a variety of configurations. Each end of a D-Style enclosure can be fitted with an end panel/bezel combination (most versatile and available on all sizes), a solid end cap (molded in durable polycarbonate), an extended metal panel (ideal for applications requiring an all-metal enclosure), or a battery compartment (9-volt battery housing with convenient sliding access cover). Other details include optional Non-Skid Feet and the widest range of finishes.

Product Specs

Materials:
- Chassis: High quality extruded aluminum
- Covers: Aluminum, Vinyl-Clad Aluminum or Steel
- End-Cap: Aluminum, Polycarbonate
Dimensions: Multiple size options available
End Configurations: End Panel/Bezel, Solid End Cap, Extended Metal Panel, Battery Compartment
Screws: Phillips Pan or Phillips Flathead
Bottom Details: OptionalNon-Skid Feet
Finishes/Colors: Warm and Cool Palette (15 colors available), Anodize or Iridite Finish
Mounting Options: Multiple tracks for mounting printed circuit boards
Shielding: Shielding characteristics suitable for most applications; Optional enhancements available

D-Style Technical Data Sheet

Product Features

Tubular, Quality Construction
Proven, Flexible Designs
Clean Styling
Enhanced Versatility and Configurability
Fast and Efficient to Assemble

Content specs that make a D different from a C or E:

Feature/Style	MicroPak C-Style	MicroPak D-Style	MicroPak E-Style
End Configurations	End panel/bezel combination, solid end, battery compartment	End panel/bezel combination, solid end, extended metal panel, battery compartment	End panel/bezel combination, solid end, battery compartment
Mounting Options	PCB Mounting, Surface mountable	PCB Mounting, Surface and panel mountable	PCB Mounting, Surface and pole mountable
Applications	Compact indoor and light outdoor use	Versatile indoor/outdoor use	Heavy-duty outdoor installations
Ingress Protection	IP54	IP65	IP67
Configurability Options	Available	Available	Available

Options

D Style End Configuration

Each end of a D Style MicroPak enclosure can be fitted with one of four configurations: an end panel/bezel combination,…

Tube

D Style enclosures are characterized by a rugged one-piece seamless extruded tube. The tube contains multiple tracks for printed circuit…

D Style Shielding

The D Style MicroPak’s design offers inherently good shielding characteristics. For more demanding situations, three enhancements should be considered: 1….

D Style PCB Mounting

Each D Style MicroPak Enclosure has multiple sets of tracks for mounting printed circuit boards. These tracks provide an efficient…

Accessories

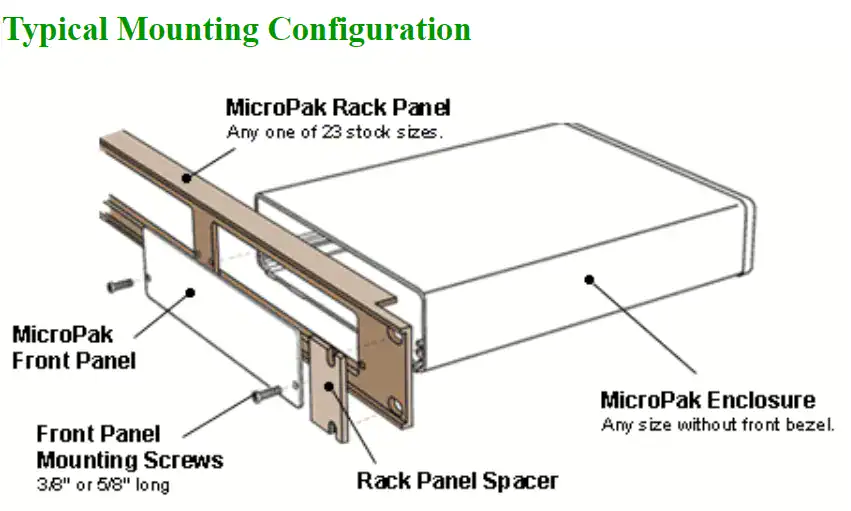

Rack Mount Panels for MicroPak Enclosures

Overview All MicroPak Enclosures can be mounted in a standard 19-inch rack using a MicroPak Rack Mount Panel. This option…
