A Style GrayBox Enclosures

A Simple and Economical 1 or 2U Rack-mount GrayBox Electronic Instrument Enclosure

A Style GrayBox Enclosure Illustration
A Style GrayBox Enclosure
A Style GrayBox Enclosure

Product Description

The A-Style GrayBox enclosure is engineered for economical rack-mounted use. With its IP67 rating, the A-Style enclosure offers superior defense against dust, moisture, and even temporary submersion. Its all-metal construction features a rugged extruded frame, integral rack mounting, and a choice of three front panel styles. The design includes a flush rear panel, removable top cover, and captured bottom cover, allowing for easy customization while maintaining structural integrity.

The A-Style family has 18 standard sizes – two heights (one and two standard rack units), one width (full rack) and nine depths (six to 22 inches in two-inch increments). Widths and depths other than these are made to order with 2-3 week delivery.

Each A-Style Enclosure is composed of six precision-machined, interchangeable parts:

two panels, two sides and two covers. Panels and sides are modified I-beam cross sections that assemble to form a rigid structural frame. The bottom cover is captured on all sides and recessed to allow mounting components with up to a size 6 or M3.5 pan head screw (eliminating the need for countersinking). The top cover contains stiffening flanges along each side that screw on from above.

Product Specs

  • Applications: Rack-mounted applications
  • Materials:
    • Chassis: High quality extruded aluminum
    • Covers: Aluminum, Vinyl-Clad Aluminum or Steel
  • Dimensions: Multiple size options available
  • Frame: Rugged extruded design
  • Heights: One and Two standard rack units
  • Widths: Full Rack
  • Depths: 6 to 22 inches (in 2-inch increments)
  • Panels: Flat, Grooved and Flanged
  • Standard Finishes: Panels and Sides – Clear Anodized and Black; Covers –  Platinum and Black Vinyl-clad Steel
  • Optional Finishes: Clear or gold iridite, paint, and powder-coat
  • Shielding: Shielding characteristics suitable for most applications; Optional enhancements available
A table illustration of the A Style Sizes

A-Style Technical Data Sheet

Product Features

  • Quality, All-Aluminum Construction
  • Proven, Flexible Designs
  • Clean Styling
  • Enhanced Versatility and Configurability
  • Fast and Efficient to Assemble

Content specs that make a A different from a P or B:

FeatureGrayBox B-StyleGrayBox P-StyleGrayBox A-Style
Mounting OptionsRack Mounting Kits, Pre-drilled bosses, surface mountableRack Mounting Kits, Panel or DIN rail mountableRack Mounting Kits, Surface and pole mountable
ApplicationsVersatile: indoor and outdoorIndoor-focused, compact installationsHeavy-duty outdoor installations
Ingress ProtectionIP65IP55IP67
Configurability OptionsAvailableAvailableAvailable

Options

Placeholder
A Style Covers

The bottom cover is captured on all sides and recessed to allow mounting components up to a size 6 (or…

Placeholder
A Style Side Panels

Sides are made from rugged aluminum extrusion. They are easily machined and contain the screw slot detail which allows the front…

Placeholder
A Style Rear Panels

Rear Panel is made from the same extrusion as the Front Panel (Type 1). It differs in that it is shorter…

Placeholder

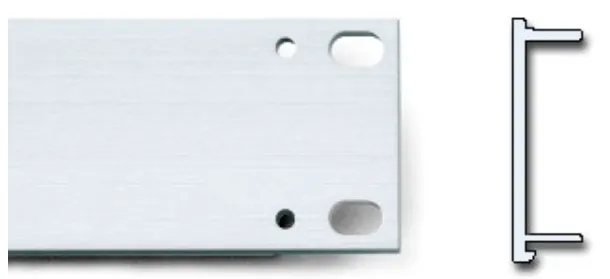

A Style Front Panels

Front Panel (Type 1) is distinguished by a plain exterior surface void of detail. Being flat, it is ideally suited for…

Accessories

Placeholder
Rack Mounting Kits

Use Rack Mounting Kits to mount GrayBox Enclosures in standard 19″ racks. The rack mount angles are available in two…

Placeholder
Rack Width Adapter Kits

Use Rack Width Adapter Kits to make sub-rack width enclosures rack width. Each kit contains front and rear panels, two…

Placeholder
Coupling Screws

Use these special shoulder screws to fasten two GrayBox Enclosures side-by-side. Two screws are required at each interface. Sold individually. …

Placeholder
Non-skid Feet

Use these self-adhesive black feet for free-standing applications. Sold individually. Rack mounting kits, non-skid feet, rack adapter kits and coupling…

Placeholder
Rack Panels

Rack Panels, either blank or customized to meet your specific needs, are available in any of the three types of…
